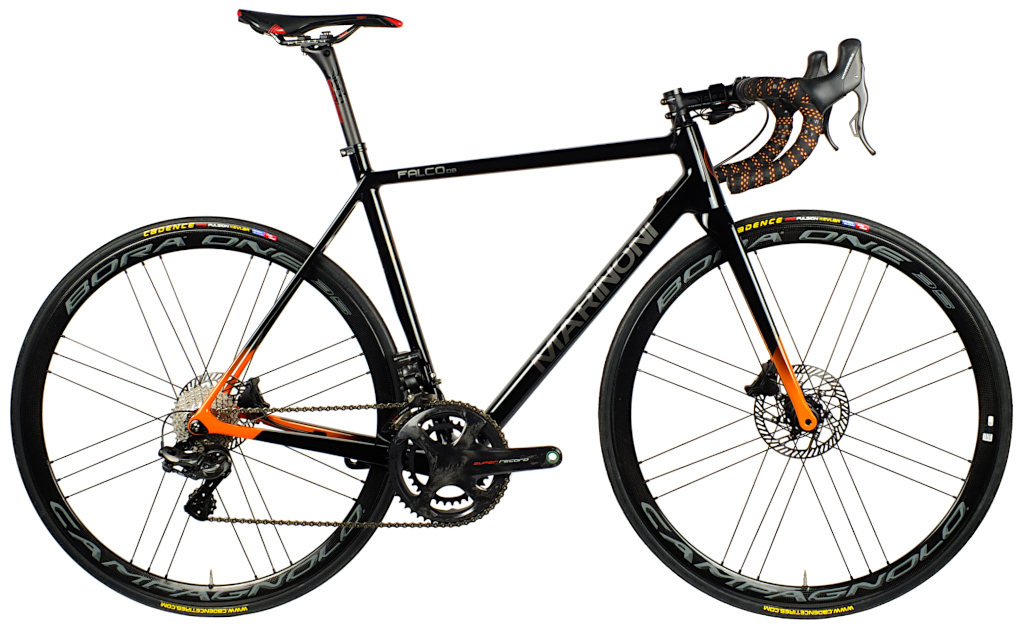

FALCO DB

Starting from $4 850

list_alt
  Frame
  Sizes   XXS / XS / S / M / L / XL / XXL
  Material   Carbon - Monocoque HM Ultralight
  Geometry   Details
  Bottom bracket   BB86
  Fork   Carbon - 1-1/8" x 1-1/2"
  Headset   FSA Orbit CF40 - 1-1/8" x 1-1/2" (121-0466)
  Brakes   Disc - Flat Mount - 160 mm front / 140 mm rear*
  Axles   Thru Axle 12 x 100/142 mm
  Seat post   27.2 mm, varies depending on groupset selection
  Cable routing   Internal shift & brake
  EPS/Di2 compatibility   Compatible, internal battery & cables
  Weight limit   100 Kg (220lbs)
  Paint
Available designs Falco / Spinta Fade / Uni
Colors Available colors
  Drivetrain
  Campagnolo   EKAR GT 13 / EKAR 13 / Chorus 12 DB / Record 12 DB / Super Record 12 DB / Super Record WRL 12
  Shimano   105 R7120 12 / 105 Di2 R7170 12 / Ultegra Di2 R8170 12 / Dura Ace Di2 R9270 12
  Components
  Varies depending on groupset selection - Specs
  Wheels
  Varies depending on groupset selection - Price list (see Wheels section)
  Warranty
  2 years - Details

* May vary depending on rider weight

Geometry
Falco DB XXS XS S M L XL XXL
Size (c-c) 420 440 460 480 500 520 540
Size (c-t) 480 500 520 540 560 580 600
Effective size 480 500 520 540 560 580 600
Top tube length (c-c) 510 522 534 547 561 575 591
Seat tube angle (deg.) 74.7 74.4 74.1 73.8 73.6 73.2 72.9
Head tube angle (deg.) 71.2 71.7 72.2 72.7 73.0 73.0 73.1
Head tube length 110 115 125 140 155 175 195
Fork rake 45 45 45 45 45 45 45
Fork trail 67 64 61 58 56 56 55
B.B. center to front hub axle 569 574 579 586 595 605 617
Chainstay length 405 405 405 405 405 405 405
Stack 510 516 526 541 556 577 595
Reach 368 376 383 389 397 401 407
Information

Paint

Design Falco (without seat tube design)
Main color Black
Design color Orange
Lettering type Standard / New
Lettering color Astro (+$)
Paint design - Falco
Falco Paint Design
Paint design - Uni
Uni Paint Design
MSRP Prices
CAMPAGNOLO
EKAR GT 13 $5 425
EKAR 13 $6 050
Chorus 12 DB $6 125
Record 12 DB $7 375
Super Record 12 DB $9 025
Super Record WRL 12 $11 075
SHIMANO
105 R7120 12 $4 850
105 Di2 R7170 12 $5 575
Ultegra Di2 R8170 12 $6 825
Dura Ace Di2 R9270 12 $10 300
FRAMESET
Stock $2 500
Custom Not available
